Execute Report (v1)

Execute report on the insights of the application and view result.

Endpoint URL

POST https://api-prod-eu-central-1.inappnavi.com/api/public/v1/insights/executeReport

Purpose

Execute report on the insights of the application and view result.

Request Structure

When making a POST request to /executeReport,include the authentication token in the header and include the following JSON body.. Below is a common example; parameter names or structures may differ based on your final OpenAPI documentation:

Parameter	Type	Required	Description
`TenantId`	`string`	Yes	The unique tenant identifier.
`ClientId`	`string`	Yes	The unique client identifier.
`ClientSecret`	`string`	Yes	The client secret.
`QueryParams`	QueryParams	Yes	The Additional data required to process API request.

`QueryParams` Parameters:

Parameter	Type	Required	Description
`ApplicationId`	`string`	Yes	The start date for the execution of report on insight data.
`displayedColumns`	`Array of Strings`	Yes	The list of property/column names to include in the insight execute report. Minimum 1 column name is required to process the report. e.g. `["EventType"]`. Available displayed columns are [`" ","id","eventType","sessionId","userId",timestamp" ","avatarVersion","integrationMode","browser",browserLanguage" ","pageUrl","pageTitle","pageLoadTime","userRole",country" ","timeZone","areaLabel","elementLabel","areaId",tagType" ","activityScope","activityTime","customField1",customField2" ","customField3","resolution"`organizationalUnit ]
`reportFilters`	Array of ReportFilter	No	The list of filters to be applied to report.
`groupBy`	`Array of Strings`	No	The name of columns on which group by clause will be applied.
`fromDate`	`string`	No	Start date in `YYYY-MM-DD HH:MM:SS` format. If provided, set `TimeRange` to `VIEW_CUSTOM_DAYS`.
`toDate`	`string`	No	End date in `YYYY-MM-DD HH:MM:SS` format. If provided, set `TimeRange` to `VIEW_CUSTOM_DAYS`.
`page`	`integer`	No	The page number to retrieve data from. Defaults to 1.
`itemsPerPage`	`integer`	No	The number of items to retrieve per page. Defaults to 50, if not specified.

`ReportFilter` Parameters:

Parameter	Type	Required	Description
`ColumnName`	string	Yes	The column name on which filter will be applied.
`Values`	Arrays of string	Yes	The conditional values
`Operator`	string	Yes	The textual operator to be applied between column name and values. Available operators are `equal_to`, `not_equal_to`, `less_than_or_equal_to`, `less_than`, `greater_than_or_equal_to`, `greater_than`, `between`, `exists`, `not_exists`, `contains`, `not_contains`, `begins_with`

`ReportFilter`Operator Information:

This table shows each column name along with the operators that cannot be used when creating filters for that column. If you see an operator listed in the “Not Available Operator” column, it means that operator is invalid or unsupported for that specific column and will not work in your filter expressions.

Column Name	Not available operator
`id`	`exists`, `not_exists`, `between`, `less_than_or_equal_to`, `less_than`, `greater_than_or_equal_to`, `greater_than`
`eventType`	`exists`, `not_exists`, `less_than_or_equal_to`, `between`, `less_than`, `greater_than_or_equal_to`, `greater_than`
`sessionId`	`exists`, `not_exists`, `less_than_or_equal_to`, `between`, `less_than`, `greater_than_or_equal_to`, `greater_than`
`userId`	`exists`, `not_exists`, `less_than_or_equal_to`, `between`, `less_than`, `greater_than_or_equal_to`, `greater_than`
`timestamp`	`exists`, `not_exists`, `contains`, `not_contains`, `begins_with`
`avatarVersion`	`exists`, `not_exists`, `contains`, `between`, `not_contains`, `begins_with`
`integrationMode`	`exists`, `not_exists`, `less_than_or_equal_to`, `between`, `less_than`, `greater_than_or_equal_to`, `greater_than`
`browser`	`exists`, `not_exists`, `less_than_or_equal_to`, `between`, `less_than`, `greater_than_or_equal_to`, `greater_than`
`browserLanguage`	`exists`, `not_exists`, `less_than_or_equal_to`, `between`, `less_than`, `greater_than_or_equal_to`, `greater_than`
`pageUrl`	`exists`, `not_exists`, `less_than_or_equal_to`,`between`, `less_than`, `greater_than_or_equal_to`, `greater_than`
`pageTitle`	`less_than_or_equal_to`, `less_than`, `between`, `greater_than_or_equal_to`, `greater_than`
`pageLoadTime`	`contains`, `not_contains`, `begins_with`
`userRole`	`less_than_or_equal_to`, `less_than`, `between`, `greater_than_or_equal_to`, `greater_than`
`countryCode`	`exists`, `not_exists`, `less_than_or_equal_to`, `between`, `less_than`, `greater_than_or_equal_to`, `greater_than`
`timeZone`	`exists`, `not_exists`, `less_than_or_equal_to`, `between`, `less_than`, `greater_than_or_equal_to`, `greater_than`
`areaLabel`	`exists`, `not_exists`, `less_than_or_equal_to`, `between`, `less_than`, `greater_than_or_equal_to`, `greater_than`
`elementLabel`	`exists`, `not_exists`, `less_than_or_equal_to`, `between`, `less_than`, `greater_than_or_equal_to`, `greater_than`
`areaId`	`less_than_or_equal_to`, `less_than`, `between`, `greater_than_or_equal_to`, `greater_than`
`tagType`	`less_than_or_equal_to`, `less_than`, `between`, `greater_than_or_equal_to`, `greater_than`
`activityScope`	`less_than_or_equal_to`, `less_than`, `between`, `greater_than_or_equal_to`, `greater_than`

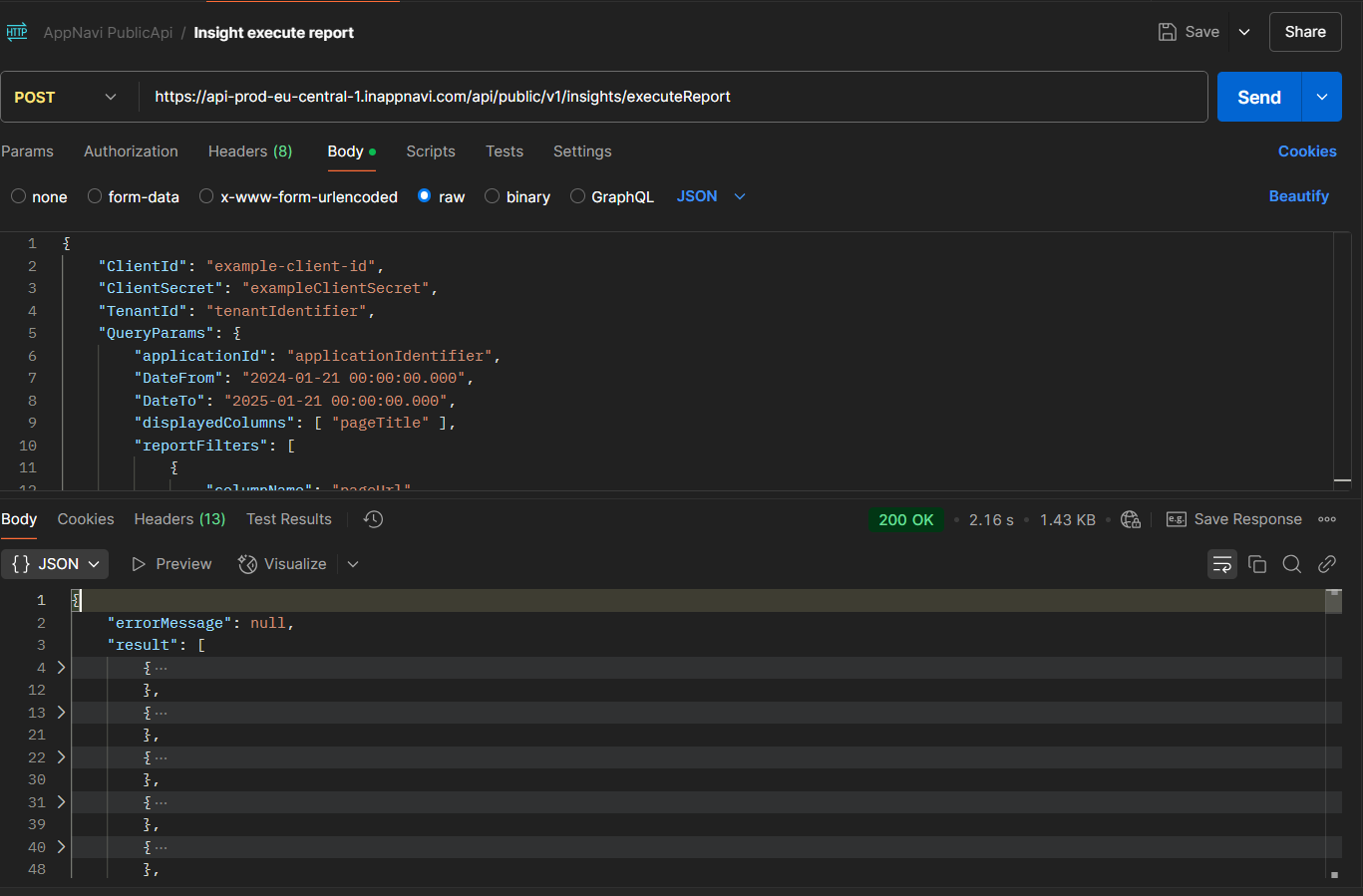

Example: Calling via Postman

Open Postman and create a new POST request.
Set the Request URL to:

https://api-prod-eu-central-1.inappnavi.com/api/public/v1/insights/executeReport

Compose the Body:
1. In the Body tab, choose raw and then JSON.
2. Enter the required parameters in the request body.
3. Example request body structure.

{
    "QueryParams": {
        "applicationId": "applicationIdentifier",
        "DateFrom": "2024-01-21 00:00:00.000",
        "DateTo": "2025-01-21 00:00:00.000",
        "displayedColumns": [ "pageTitle" ],
        "reportFilters": [
            {
                "columnName": "pageUrl",
                "values": [ "someValue" ],
                "operator": "contains"
            },
            {
                "columnName": "browser",
                "values": [ "someValue" ],
                "operator": "contains"
            }
        ],
        "groupBy": [],
        "itemsPerPage": 50,
        "page": 1
    }
}

Send the Request:
1. Click Send.
2. If everything is correct, you should receive a 200 OK response with a JSON response containing the execute report data.

Updated 21 days ago
